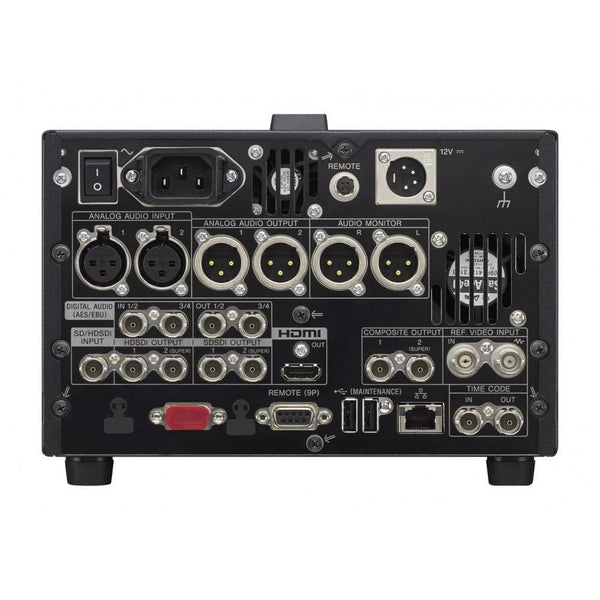

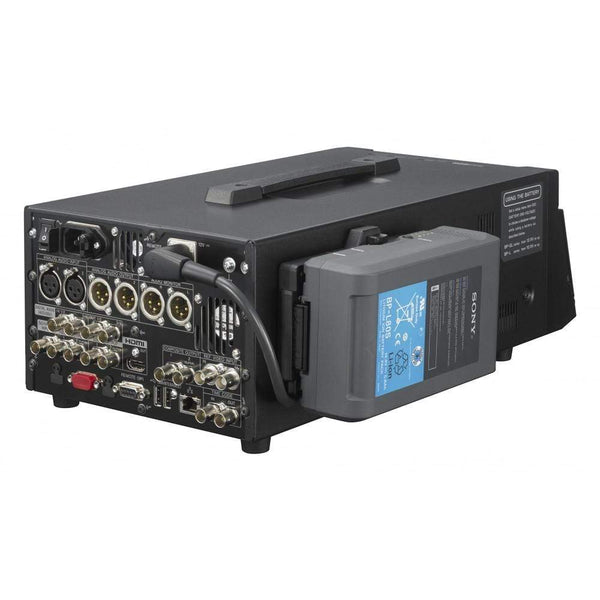

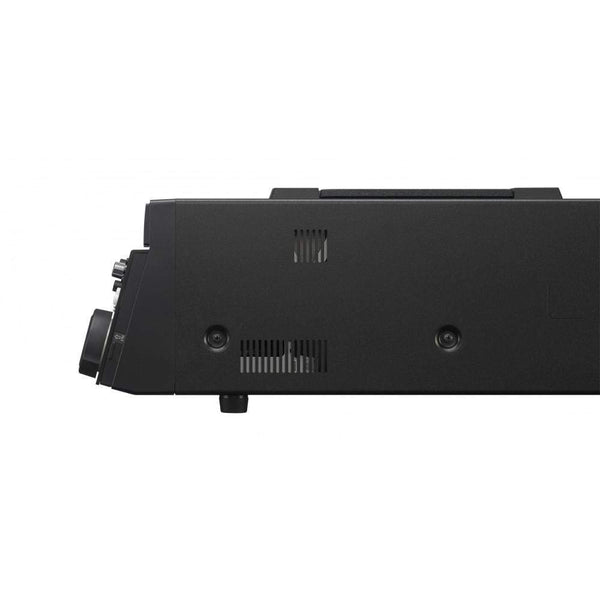

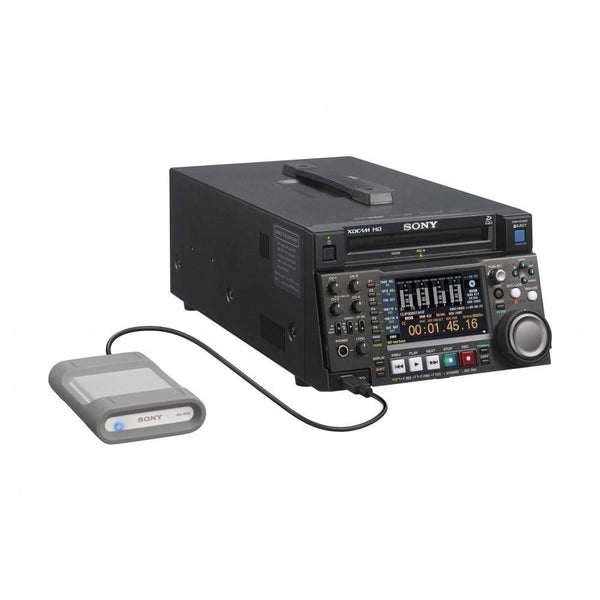

Recorder deck Sony PDW-HD1550
Pret fara TVA:
481,104.17 MDL
Recorder deck Sony PDW-HD1550
577,325.00 MDL
641,472.00 MDL
577,325.00
Ai o intrebare?
Sony PDW-HD1550 este un recorder XDCAM HD42 ce ofera capabilitati avansate de inregistrare XAVC Intra 422 la 100 Mbps pe toate tipurile de discuri profesionale, inclusiv de tip Quad Layer si Triple Layer. Recorderul ofera, de asemenea, interfata USB ce suporta solutii SxS si Professional Disc bridge.
Recorderul este pe cat de compact, pe atat de puternic si poate realiza operatiuni fluide jog/shuttle prin crearea de proxy data. Pe langa XAVC, deck-ul inregistreaza si MPEG HD 422 la 50 Mbps si MPEG HD 420 la 35 Mbps si 25 Mbps, precum si MPEG IMX si DVCAM.
Alimentare | AC 100 V la 240 V, 50/60 Hz, DC 12 V |
Dimensiuni | 210 x 132 x 420 mm |
Format video inregistrare/playback | MPEG HD422 (CBR, 50 Mbps) MPEG HD: - HQ mode (VBR, maximum bit rate: 35 Mbps) - SP mode (CBR, 25 Mbps) - LP mode (VBR, maximum bit rate: 18 Mbps) *2 MPEG IMX (CBR, 50/40/30 Mbps) DVCAM (CBR, 25 Mbps) |
Format audio inregistrare/playback | MPEG HD422: 8 ch/24 biti/48 kHz MPEG HD: 4 ch/16 biti/48 kHz MPEG IMX: 4 ch/24 biti/48 kHz sau 8 ch/16 biti/48 kHz DVCAM: 4 ch/16 biti/48 kHz |
Intrare referinta | BNC (x2) (inclusiv loop-through), HD Tri-level sync (0.6 Vp-p/75 Ω/negativ) sau SD blackburst/composite sync (0.286 Vp-p/75 Ω/negativ) |
Intrare HD - SDI | BNC (x1) (HD/SD comutabil) HD-SDI: SMPTE 292M (w/embedded audio) SD-SDI: SMPTE 259M (w/embedded audio) |
Intrare audio analogica | XLR-type 3 pini (mama) (x2) (canal selectabil), +4/0/-3/-6 dBu (selectabil), 10 kΩ, balansat |
Intrare timecode | BNC (x1), SMPTE timecode, 0.5 Vp-p to 18 Vp-p/3.3 kΩ/nebalansat |
Iesire composite analogica | BNC (x2), 1: 1.0 Vp-p/75 Ω/negativ, SMPTE 170M 2: 1.0 Vp-p/75 Ω/negativ, SMPTE 170M, caracter on/off |
Iesire SD - SDI | HD SDI BNC (x2), 1: SMPTE 292M (w/embedded audio) 2: SMPTE 292M (w/embedded audio), caracter on/off SD SDI BNC (x2), 1: SMPTE 259M (w/embedded audio) 2: SMPTE 259M (w/embedded audio), caracter on/off |
Iesire HDMI | Tip A 19 pini (x1) Video: 1080i, 480i, 480P, 576i, 576P Audio: 2 ch/16 bits/48 kHz |
Iesire audio analogica | XLR 3 pini (tata) (x2) (canal selectabil), +4/0/-3/-6 dBu (selectabil), 600 Ω, Lo-z, balansat XLR-type 3 pini (tata) (x2), +4 dBu, 600 Ω, Lo-Z, balansat |
Iesire timecode | BNC (x1), SMPTE timecode, 1.0 Vp-p/75 Ω/nebalansat |
Ethernet | RJ-45 (x1) 1000BASE-T: IEEE 802.3ab 100BASE-T: IEEE 802.3u 10BASE-T: IEEE 802.3 |
USB | Frontal: (x1) USB 3.0 |
