Producator: Blackmagic Design

Cod produs: CONVMCAUDS4K

Disponibilitate: Stoc producator

6,950.00 MDL 6,950.00
Pret fara TVA: 5,791.67 MDL

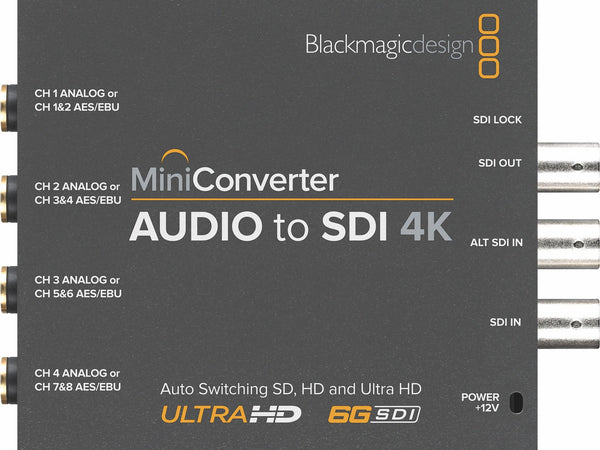

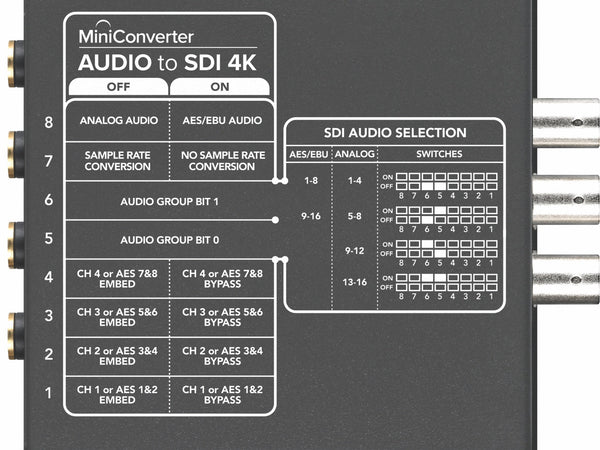

Mini convertorul audio la SDI 4K include tot ceea ce ai nevoie pentru a embeda 4 canale de audio analogic sau 8 canale de audio digital AES/EBU in orice conexiune video SDI.

Intrari video SDI
1 x SD, HD sau 6G‑SDI. 1 x ALT SDI pentru comutare automata daca feed-ul principal cade
Iesiri video SDI
1 x SDI embedat
Intrari audio analogice
4 canale de audio analogic balansat
Intrari audio digitale
8 canale de audio balansat AES/EBU
Formate
Standarde video SD

525i59.94 NTSC, 625i50 PAL

Standarde video HD

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

Standarde video 2K

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Standarde video Ultra HD

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

Standarde video 4K

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

Compatibilitate SDI

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, SMPTE ST-2036, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601

Alimentare
+12V - 31V DC
Dimensiuni
115 x 92 x 23 mm
