Producator: Sony

Cod produs: BPU-4800

Disponibilitate: Stoc producator

2,006,145.00 MDL 2,229,050.00 MDL 2,006,145.00
Pret fara TVA: 1,671,787.50 MDL

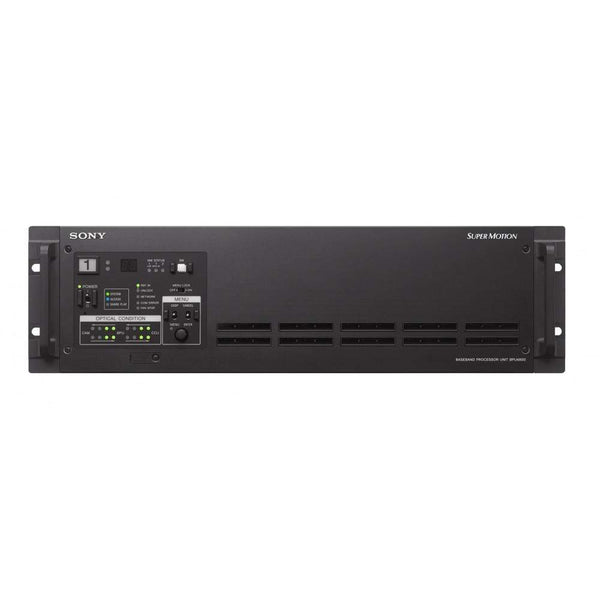

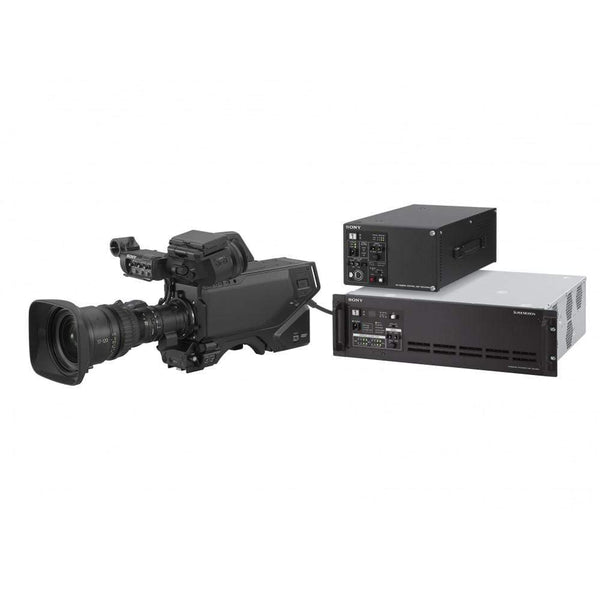

Echipamentul perfect pentru a lucra alaturi de camera HDC-4800, Sony BPU-4800 combina procesarea baseband si functiile unui server UHFR intr-o singura unitate compacta, montabila in rack.

BPU-4800 asigura inregistrare si playback pentru tot continutul UHFR, fara sa fie necesar un server dedicat separat pentru ultra slo-mo, oferind pana la patru ore de arhivare 4K UHFR.

Integrarea in timp real cu PWS-4500 prin reteaua Share Play permite de asemenea o editare rapida si de calitate.

Sony BPU-4800 inregistreaza imagini la rezolutie intreaga 4K Ultra HD de pe HDC-4800 de pana la 8x sau Full HD la 16x pentru actiune split-second. Dispozitivul permite si crearea unui sistem puternic de server pentru replay.

Pachetul contine: Sony BPU-4800, placute numar, instructiuni "inainte de a folosi dispozitivul", instructiuni utilizare (CD-ROM), cablu, RJ45-DSUB, Part Nr. 1-848-424-12 (SONY).

Alimentare 100 V to 127 V/200 V la 240 V AC, 50/60 Hz
Dimensiuni  424 x 132 x 410 mm

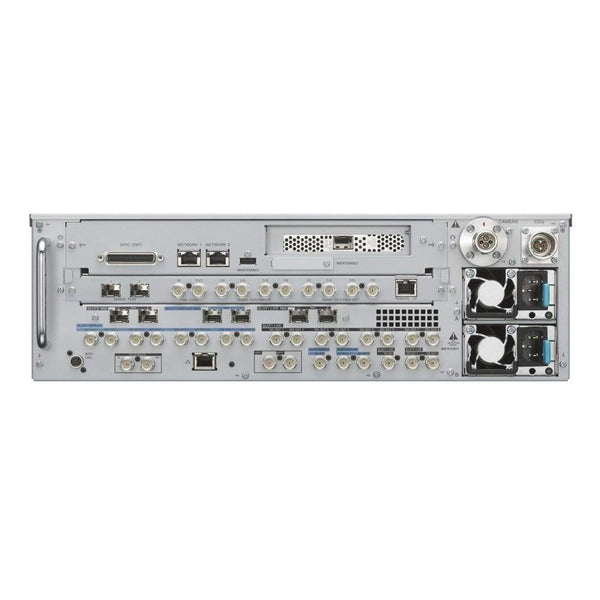

Conector camera Multi-conector optic/electric (conector LEMO 3K.93C)
CCU Multi-conector optic/electric (conector LEMO 3K.93C)
LAN 8 pini
Remote 1/2 RJ-45
GPIO (25P) 25 pini D-Sub (mama)
NETWORK1 catre 2 RJ-45 (x2) 1000BASE-T
Intrare 3G-SDI SMPTE ST424/425 Level-A/B, 2.970 Gbps/2.967 Gbps
Intrare HD-SDI SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
intrari referinta BNC (x1)
HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω
SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/, PAL: 0.3 Vp-p, 75 Ω)
DIGITAL AUDIO (AES/EBU) BNC (x4)
CH 1/2 to CH 7/8, format AES/EBU, nebalansat
TIMECODE INPUT BNC 0.5 Vp-p to 5 Vp-p, 10 kΩ
Iesire 3G-SDI BNC (x8)
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps
Iesire 3G/HD-SDI (slot 1 replay) BNC (x8)
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps 3G-SDI/HD-SDI selectabil
Iesire 3G/HD-SDI (slot 2 replay) BNC (x2)
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps, 3G-SDI/HD-SDI selectabil
Iesire HD SDI (slot 3 live) BNC (x1)
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
Iesire HD SDI (slot 3 replay) BNC (x1)
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
