Producator: DataVideo

Cod produs: DAC-70

Disponibilitate: Stoc producator

10,495.00 MDL 12,357.00 MDL 10,495.00
Pret fara TVA: 8,745.83 MDL

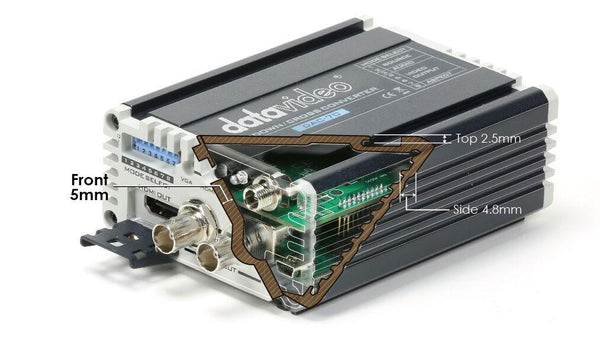

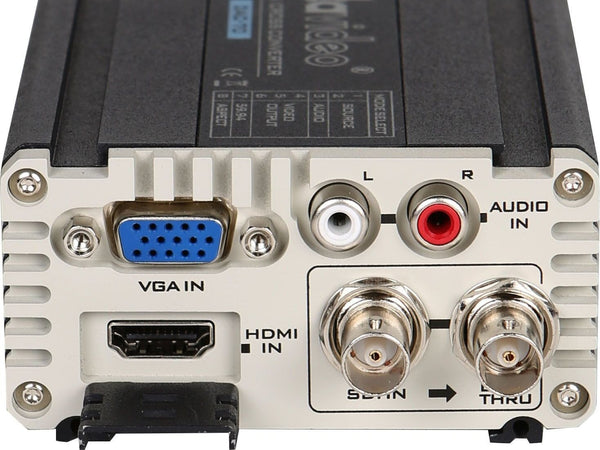

Un dispozitiv gandit sa transforme semnalele video din VGA, HDMI, SDI cu intrare audio in 3G/HD/SD SDI. Convertorul Datavideo DAC-70 este perfect pentru a conecta un output VGA/HDMI din computer cu dispozitive SDI, prin cabluri SDI, pe distante lungi. DAC-70 are interfata USB pentru update-uri de firmware si beneficiaza de o carcasa din metal si de un design compact si robust, pentru a rezista la folosire intensa.

In acelasi timp, asigura un consum mic de energie, cu aproximativ 30-50% mai putin decat convertoarele obisnuite, si o disipare redusa a caldurii, fiind ideal pentru a opera un numar crescut de ore intr-un mediu ventilat normal. Datavideo DAC-70 suporta o gama larga de formate video 3G, inclusiv 1080p 50/59.94/60Hz.

Formate de input video:
  • SD-SDI: 525i, 625i
  • 3G-SDI: 1080p60/50, 1080p59.94 (Level A)
  • HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
  • HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, 1600x1200@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1280x1024@60Hz, 1024x768@60Hz, 800x600@60Hz
Formate de output video:
  • SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i
Formate adio acdeptate:
  • Audio embedat SDI: Up to 8-CH, PCM 48KHz
  • Audio embedat HDMI: up to 8-CH, PCM 96KHz
  • Stereo audio input: 2-CH, PCM 48KHz

Pachetul contine: DataVideo DAC-70, adaptor comutare AD DC 12V, DIP switch Pin 8 label.
